PARALLELISM PRESSES CONTROL

PARALLELISM CONTROL OF COLUMNS MOLDING MACHINES, EQUIPMENT TREATED IN ROME, IN ITALY AND ABROAD

controllo parallelismo presse

With perfect control of parallelism relative to the columns in die-casting presses, as well as injection, we can ensure an exceptional functionality of the same in any situation. We employ a complex Gefran instrumentation in order to determine the parallelism relative to the presses and to keep the right extension of the columns under control: the QE100W set.

In analogy to the existing strain gauges, the QE100W magnetic pressure deformation sensors will carefully evaluate the surface deformation relative to the assembly area.
The set is available to you in no time; it allows to get the alignment of the molding devices in the shortest possible time.

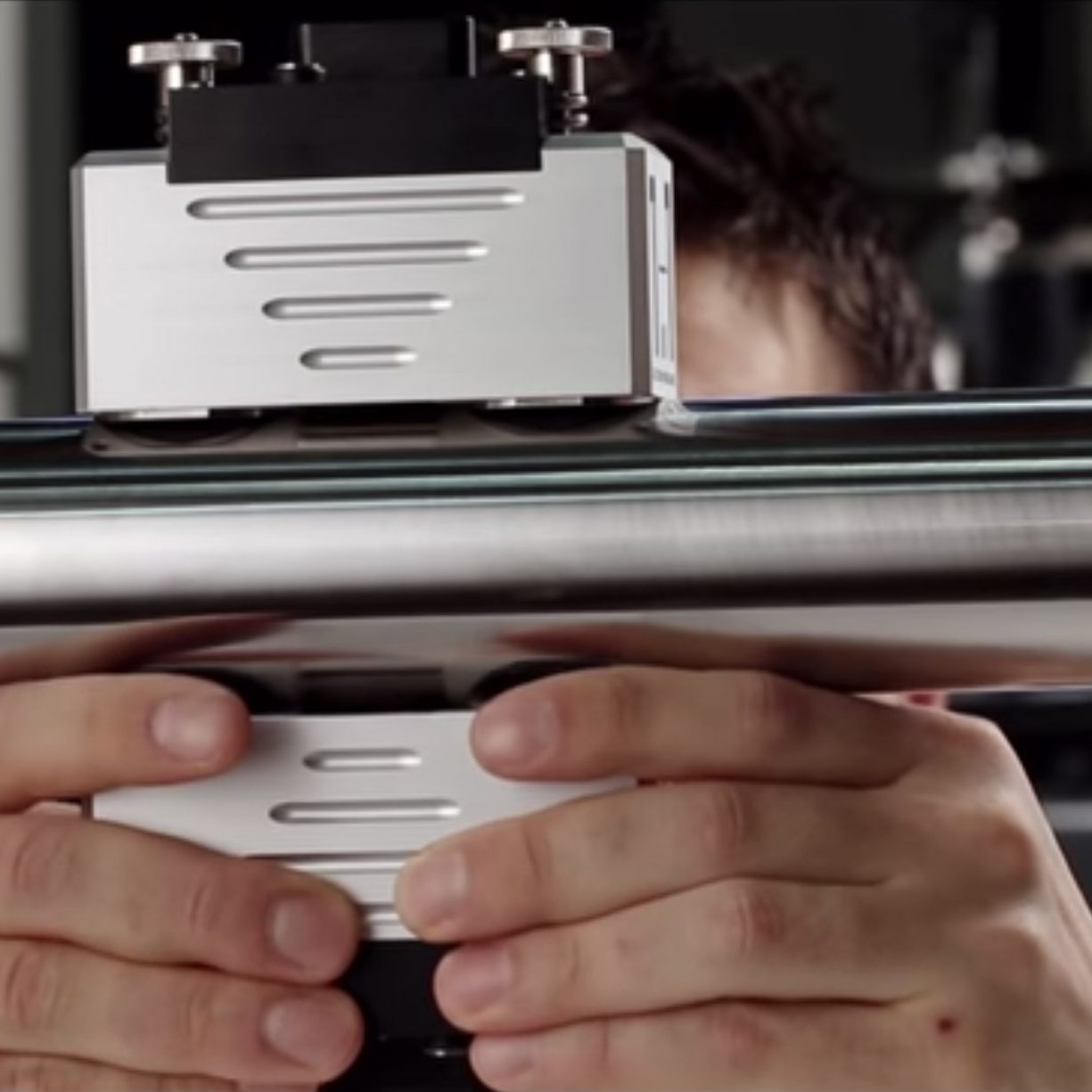

The installation of QE1008W requires only a few seconds and requires no cables. The system presses the strain gauges on the area to be measured, so as to use a level of force such as to allow the friction to replace the weld that is usually used to stop the strain gauges. The assembly turns out to be very fast and the extensometer is sheltered. The present amplifier, together with the wireless module, makes this device a modern sensor, characterized by unique features, as well as by a very high ease of use.

Set QE1008W allows fast alignment by structures (for example presses) with four columns; it will not be necessary to use torque wrenches or other tools.

  • column bending detection capability (ie the detection of the possible column split)
  • used on presses and injection molding or die-casting machines
  • one system independent of the column diameter
  • a very high level of precision (even for applied strain gauges)
  • a value of the deformation calculated immediately in kN, με or in tons
